The example below is from our new book (Chapter 16).
To start, let's build a 4-sided bird house with an 8" roof at a 45 degree wall angle (slope) and 4" high (pyramid roof).
Using the Crown Molding & Trim book, Flowerpots & Birdhouse Chart or the Compound Miter Excel Program for a 4-sided, 8" size pyramid at 45 degree wall angle with a height of 4", you will be able to determine that the stock needed is 5.66" wide and 26" long.

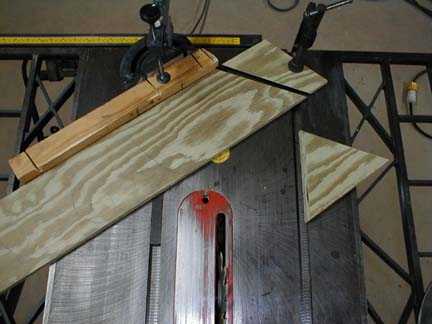

Always turn the miter gauge in the counterclockwise direction (method #1, Chapter 12) so you will be able to set up and use the first cut scrap material as a jig to cut the other pieces. (Notice clamped piece used as a guide.)
Flip the stock over and align the stock with the saw blade to the proper top width of 8 inches for the next cut. (Use the scrap material as a jig, aligning it with the stock material, and clamping it to the table saw as shown). Make the next cut.
It may be necessary when cutting a pyramid to make a 1/4" cut from the stock to true it back up before turning it over and aligning it against the jig. (This will only be necessary when cutting a pyramid.) After each cut, flip the stock over and realign the stock material to the jig. Proceed until all pieces are cut.

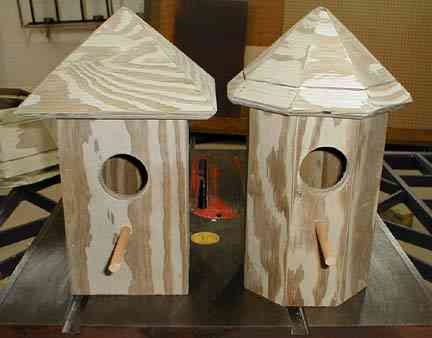

Here is the final assembly of the 4-sided roof for the bird house, as well as an 8-sided bird house.
You can determine the blade tilt for the bottom part of the bird house from our book, Flowerpots & Birdhouse Chart or Compound Miter Excel Program. (i.e. Use wall angle of 90 degrees for both. Blade tilt for 4 sides and 8 sides. (i.e. 45 and 22.5 degrees.)
They are ready to paint and enjoy.
