Digital 360º Protractor

Get precise angle measurements instantly with our new digital 360º protractors. Available in 8", 12" and 18" lengths with either aluminum (with magnets) or stainless steel blades. The stainless steel protractor is also available in the 24" size. Accurate to within ±0.1°. Also allows measurement of crown spring angle directly using the "Zero" button.

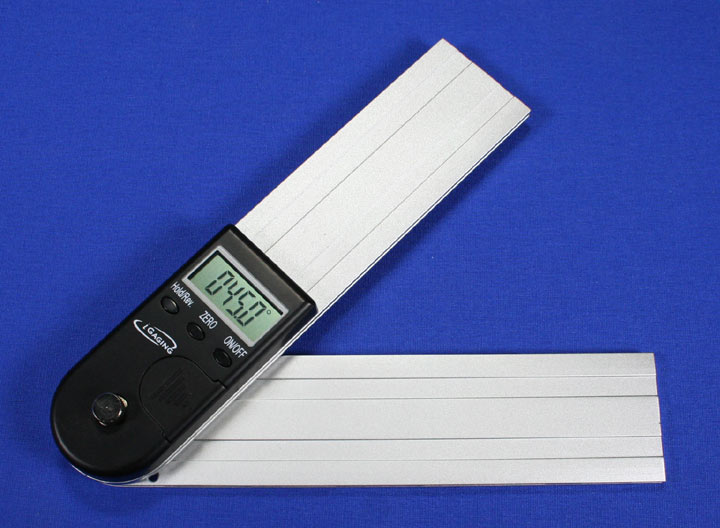

Click photos to enlarge	Measure any angle instantly. The aluminum protractors have strong magnets inserted in the edges of the blades. The 8" protractor is shown. Available in 8", 12" & 18" sizes. The size for the aluminum protractors is the actual overall length .

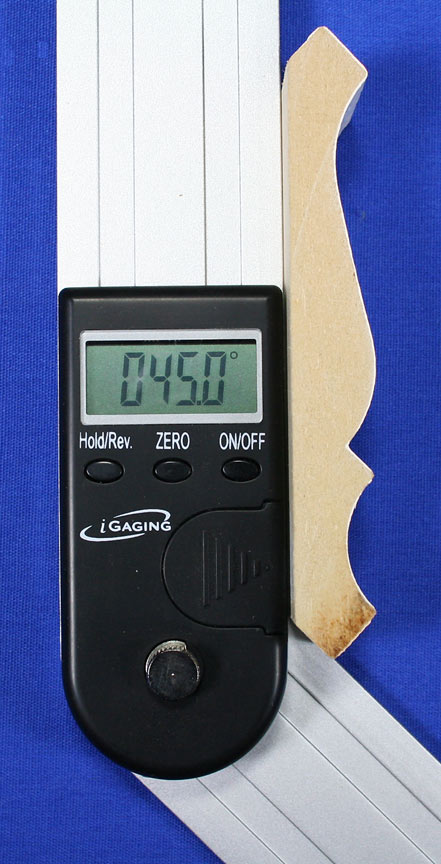

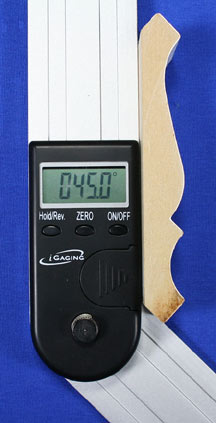

	The crown spring angle can be obtained directly by using the "Zero" button. Extend the tool straight and stand the tool up on edge using a flat surface and press the "Zero" button. The tool will now display zero with blades extended straight. To read spring angle directly simply place a short piece of your crown as shown. This 5" MDF crown has a 45° spring angle.

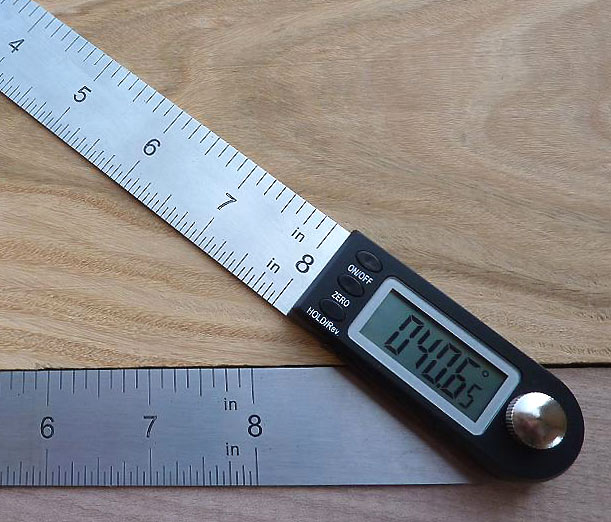

	Best Value Protractor The digital protractors are also available with stainless blades. Available in 8", 12", 18" & 24" sizes. Shown is the 8" size (overall length is 11"). The stainless steel blades do not have magnets. The overall length of the stainless steel protractors is 3" longer that the stated size. I.e. the 8" size is 11" overall length.

Specifications:

Size: Aluminum blades, 8", 12"& 18" (overall length)
Size: Stainless Steel blades, 8", 12", 18" & 24"
(add 3" to the size for overall length - 8" size is 11" long)
Large LCD display
Strong magnets on all edges of aluminum blades
Measuring Range: 0-360 degrees
Resolution: 0.05 degrees
Accuracy : ±0.1 degrees
Repeatability: ±0.05 degrees
Easy & strong blade lock system
Battery: 3.0V CR2032 one installed, one spare battery (18" and 24" stainless steel protractor does not come with spare battery).
Automatic shut off in 2.5 minutes
Reverse/Hold reading

Operation:

ON/OFF: Power on, power off button.
Zero Setting: Press "Zero" will display 000.0° with the blades in their current position.
Hold: Press "Hold" button to hold the data on display, to return to measuring mode press button again.
Rev: Press and hold the "Reverse" button for 3 seconds to rotate the displayed value 180°. Press again for 3 seconds to return.

Precision Tools for Woodwork & Metalwork
Accurate reading! Easy to use!

Digital 360° Protractor (Aluminum Blades)

Digital 360° Protractor (Stainless Steel Blades)
(Add 3" to the size to get overall length, 8" size is 11" long, etc.)
