The AngleCube Bevel Gage is perfect to check/set
the bevel on your compound miter saw, table saw or
your radial arm saw. Measures absolute level and relative
angle between two surfaces with ±0.2° accuracy.

Specifications:

Super large reversible LCD display
CNC machined Aluminum body with chrome finish
US made Navigational sensor for tracking sea level
Measures relative bevel
3 sides strong magnets, on both sides and bottom
Standard 9V battery, 250+ hours, (included)
Includes small screwdriver for battery access
Accuracy: ±0.2º
Tilt range: 0-90º
Resolution: 0.05º
Repeatability: 0.05º
Squareness: ±0.0005 inches
Automatic shutoff in 4 minutes
Display will invert when rotated over 90°
One Year Warranty

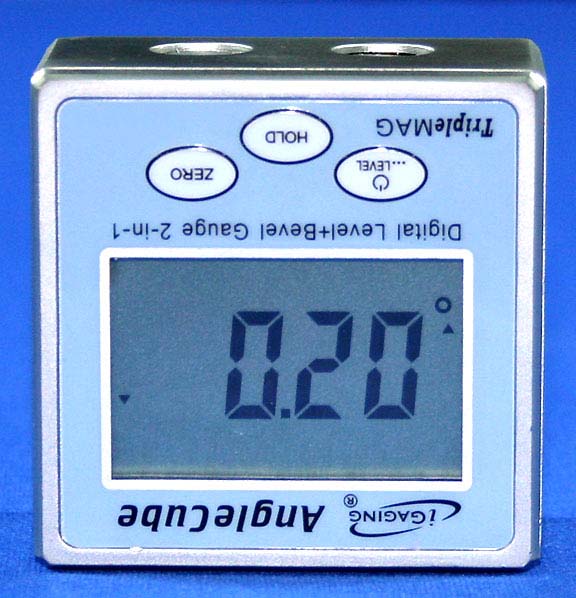

The display on the AngleCube will automatically rotate/invert 180° when cube is rotated past 90°. (Click photo to enlarge)

Operation:

To read Absolute Level, push Level Button, "Level" will appear on upper left-hand corner.
To set Relative Zero, push "Zero" button to measure relative bevel angle between two surfaces.
To switch back to Level measuring push "Level" button
To Hold value press Hold button, "Hold" will appear in display. Press Hold button again to resume operation.
If low battery indicator lights or no display, remove back plate (use screw driver included) and replace 9V battery.

To check/set saw bevel (click photos to enlarge)

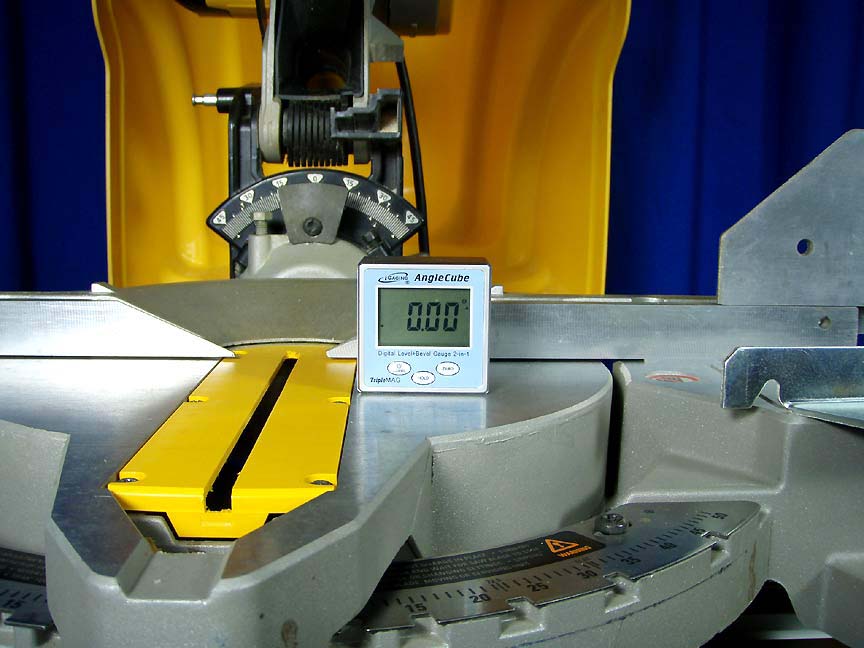

	Set saw on solid base and place angle cube on saw table. Press "Level" button to turn on. Then press "Zero" button to zero reading.

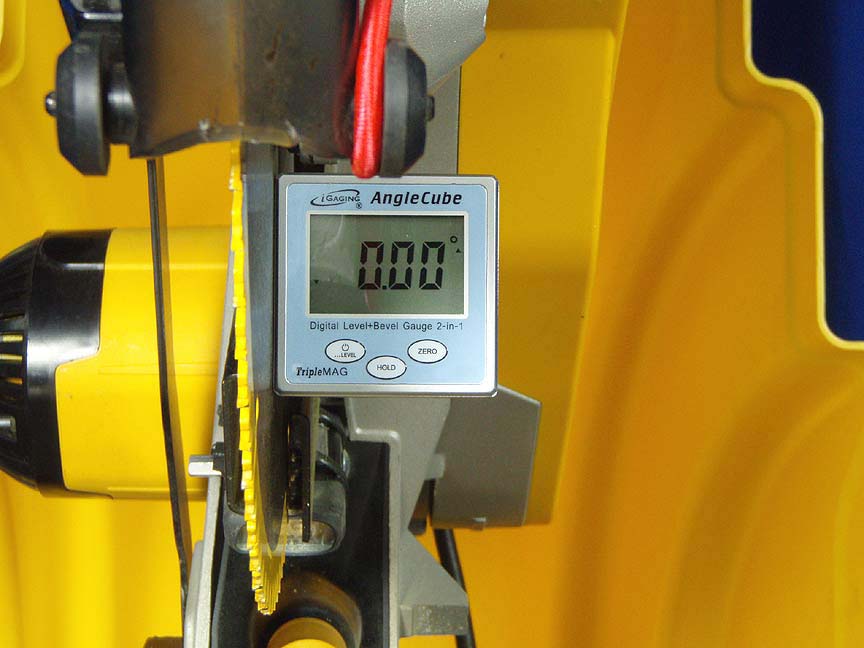

	Remove digital cube and attach to saw blade with blade tilt set at zero. (Strong magnets on both sides and bottom will hold the AngleCube in place.) If the digital cube does not read zero degrees then adjust your saws blade tilt until it does. (See your saw manual for adjusting details.) Your saw blade will now be square with your saw table.

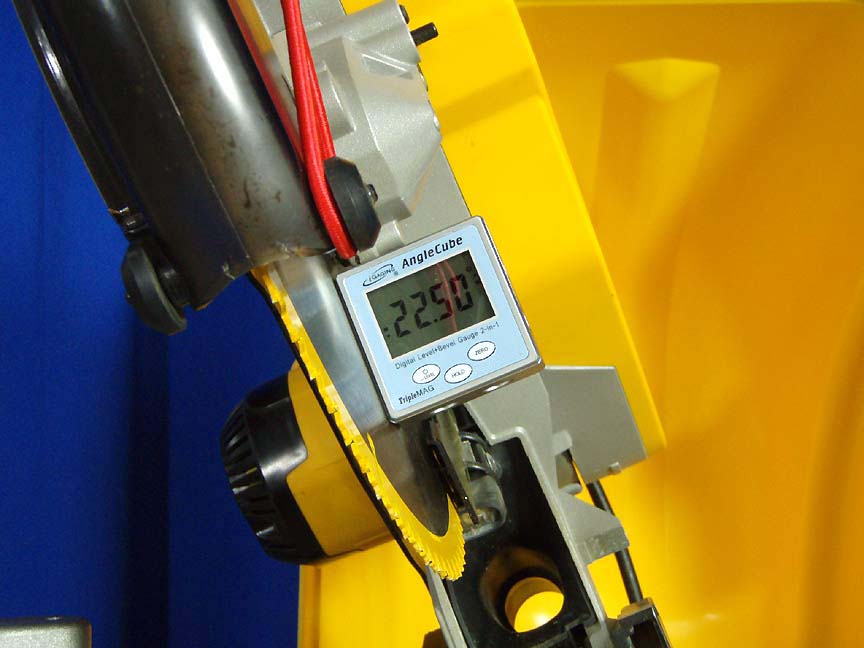

	To check the blade tilt scale, tilt the saw to 22.5º. You should read the same on the digital cube.

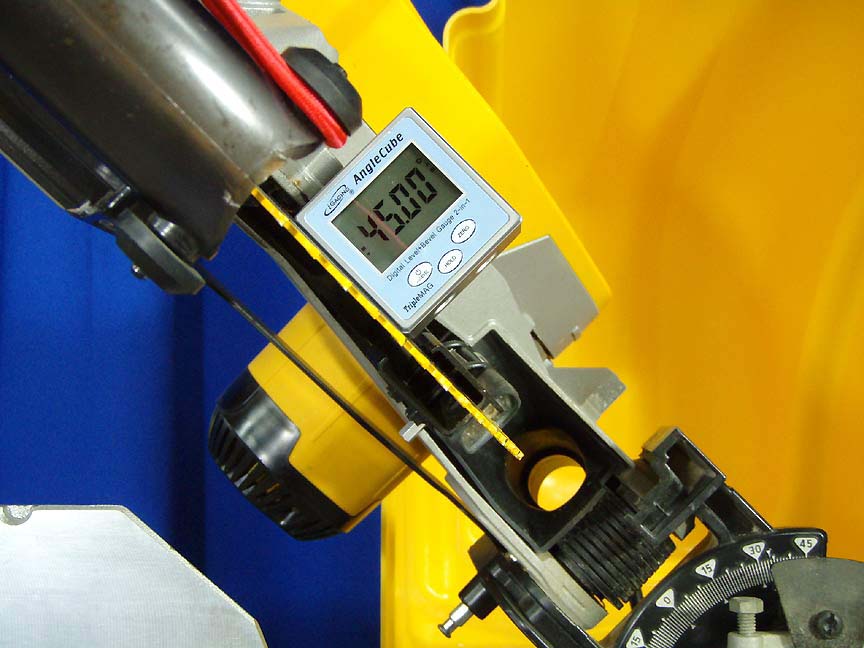

	To further check your saws blade tilt move tilt until it reads 45º. The digital cube should read 45º. If your saw tilts both ways, right and left, repeat above steps for the opposite direction of tilt.
